Conveyor Rollers & Frames
ASAS Technologies Company supplies high-performance conveyor rollers and frame systems engineered for efficient bulk material handling operations. Our conveyor roller solutions are designed to improve conveyor reliability, reduce maintenance requirements, and ensure stable conveyor performance in demanding industrial environments including mining, cement, aggregate, ports, power generation, and manufacturing industries.
1. Carrying & Return Rollers
Rollers both carrying and return are made as per : ISO,UNI, DIN, AFNOR, FEM, BS, JIS and CEMA Standards.
Technical Detail
- Roller Dia: 63, 89, 108, 133, 159, 194 mm
- Pipe Length: Customized
- Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
- Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc

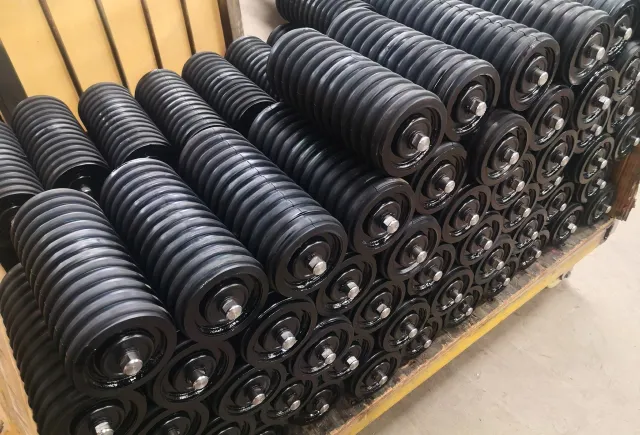

2. Impact Rollers
These are shock absorbing roller with additional rubber rings onsteel roller which are used at carrying of belt at the belt load point area.
Technical Detail
- Roller Dia: 63, 89, 108, 133 mm
- Pipe Length: Customized
- Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
- Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc

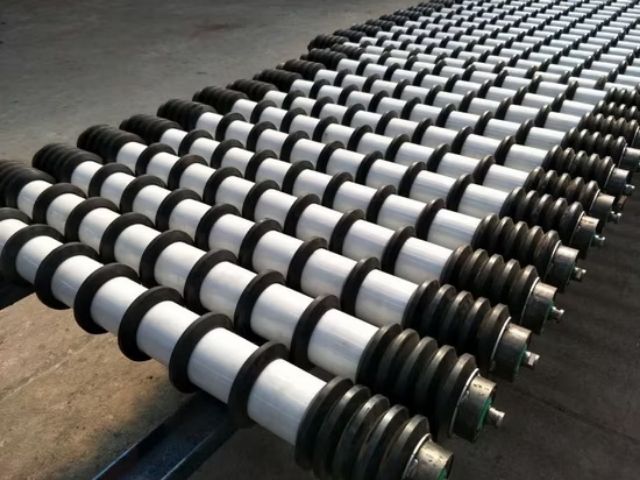

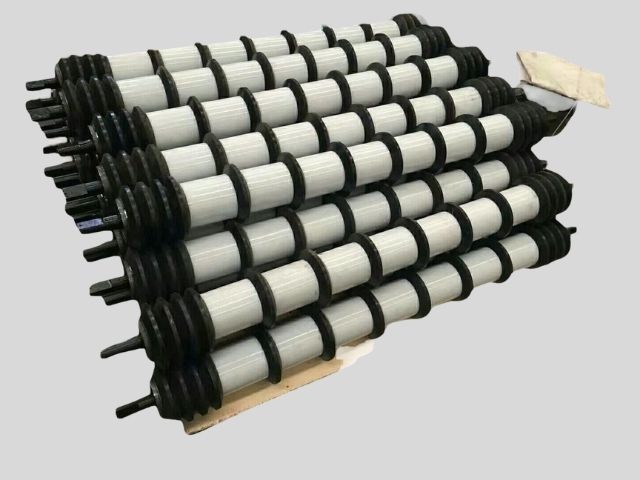

3. Rubber Disc Return Rollers
Rollers with spaced rings are used to sustain and support the belt during its return section, where the conveyed material tends to stick to the belt or wherever there is a wear problem or tracking problem of the belt itself.
Technical Detail
- Roller Dia: 108, 133,159 ,180 mm
- Pipe Length: Customized
- Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
- Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc

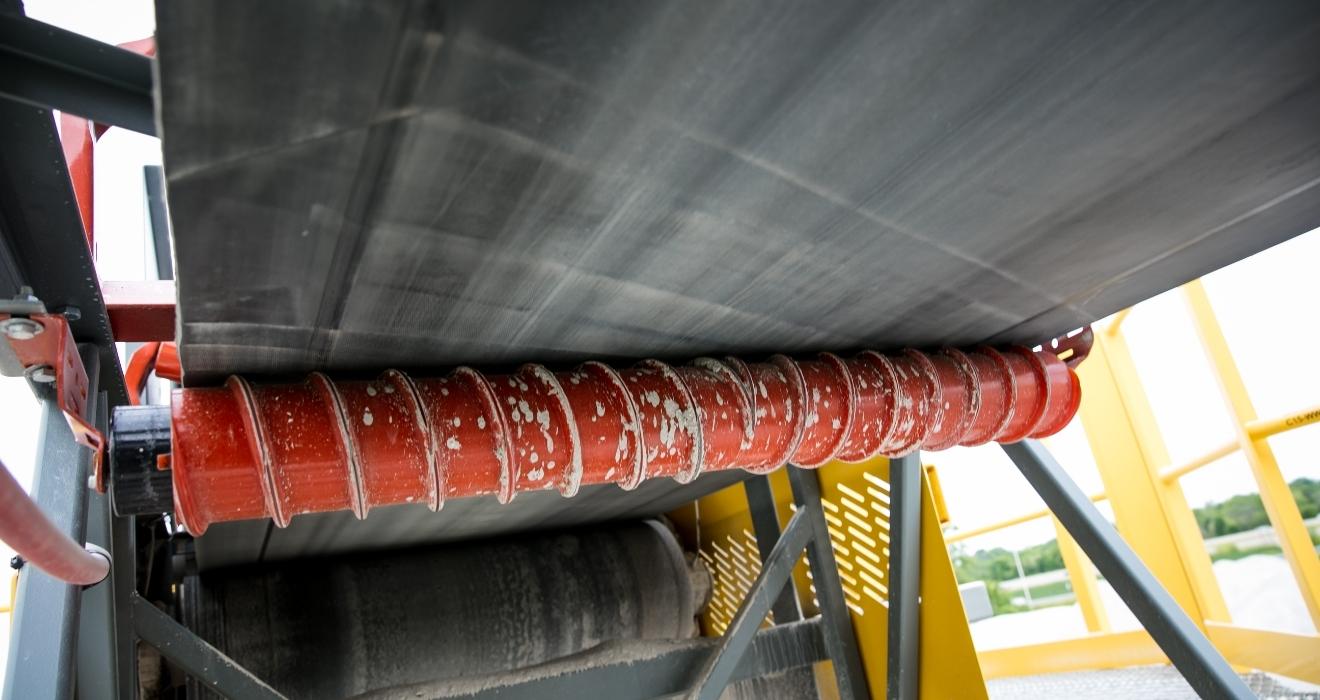

4. Spiral Return Rollers
Return rollers with helical rubber rings for self cleaning. Spiral rollers with steel springs are also option.
Technical Detail
- Roller Dia: 108, 133, 180 mm
- Pipe Length: Customized
- Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
- Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. Special design and particular labyrinthine
seal style prevent the corrosion by impurity, water and air etc.

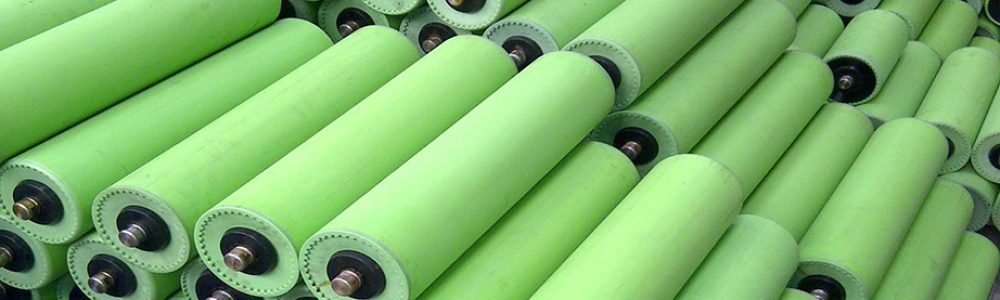

5. Composite Rollers
Composite Rollers is made with composite except the shaft. They have longer life in abrasives environment and no adhesion of carry back. Mining, Fertilizer, Chemical industry have better application of composite rollers.
Technical Detail
- Roller face width: 160—1000mm
- Roller Diameter: 76/89/102/108/114/127/133/140/152/159/178/196/219mm
- CEMA: 4”/5”/6”/7” Standard GB,JIS,CEMA ,SABS

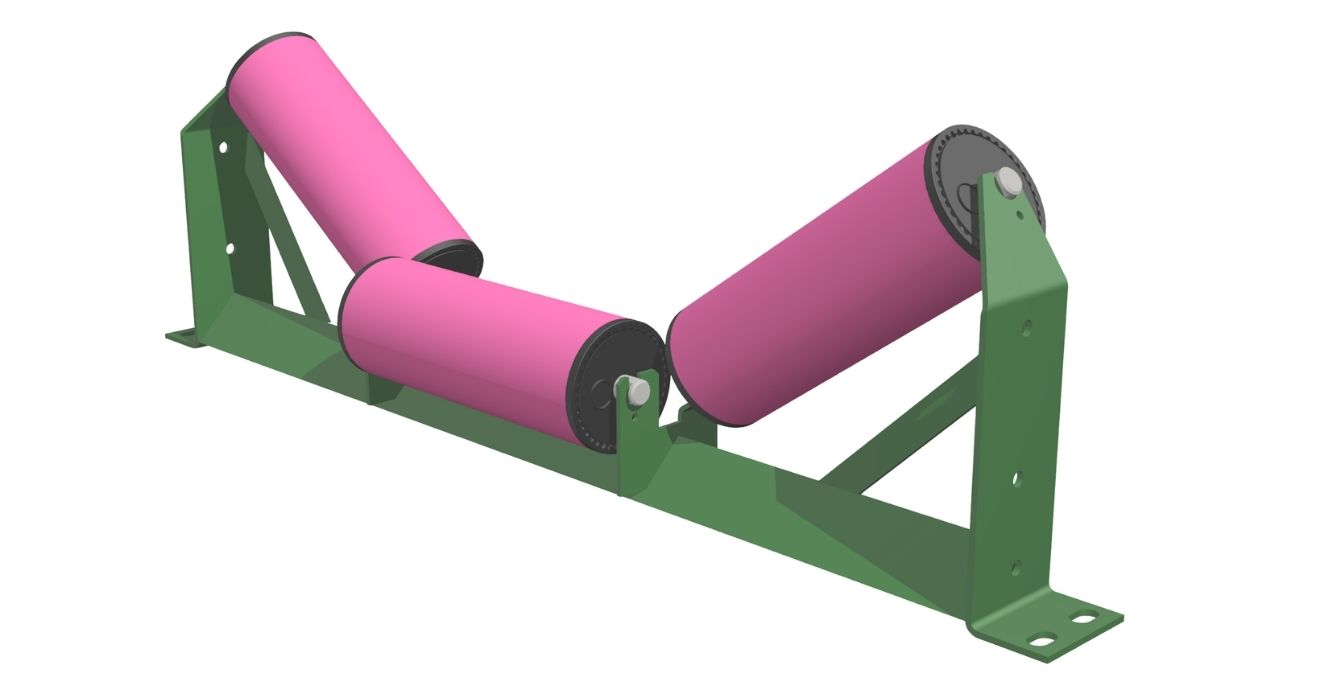

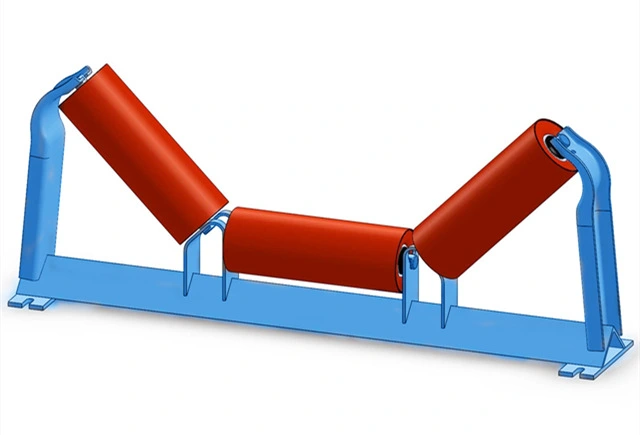

6. Carrying Idler Roller Frames
Troughing set or Idler frames for carrying Idler Rollers are manufactured as per drawing and standard.
Technical Detail
- Two Roller Frames
- Three Roller Frames
- Material of construction. Carbon Steel
- Type of finish: Sand blasting, Hot dip galvanized, paint with anti rust

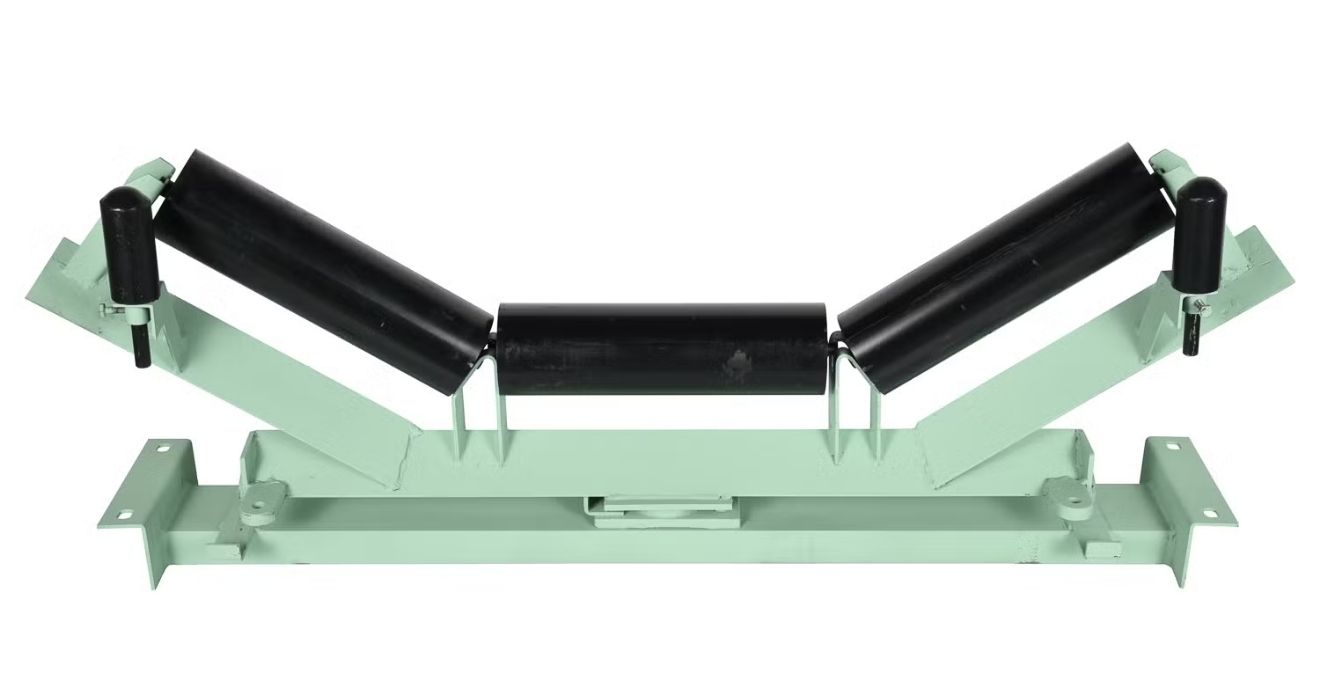

7. Return Idler Roller Frames
Troughing set or Idler frames for Return Idler Rollers are manufactured as per drawing and standard.
Technical Detail
- Return roller frames for Single and double rollers
- Material of construction: Carbon Steel
- Type of finish: Sand blasting, Hot dip galvanized, paint with anti rust

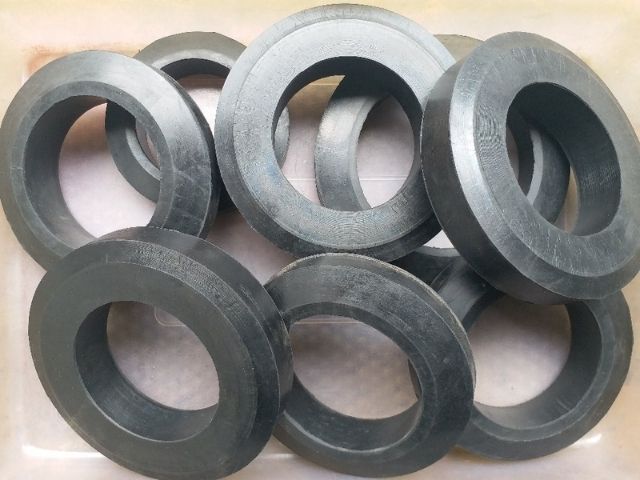

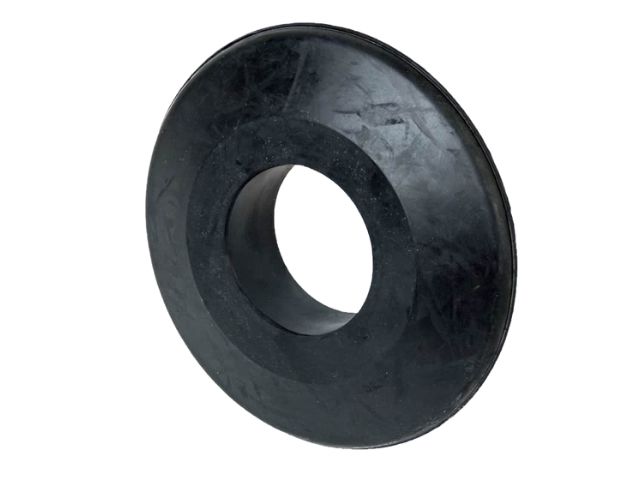

8. Rollers Rubber Discs
Rubber Rings spares are supplied for Impact Rollers as well for Rubber disc roller
Technical Detail
- Dia: 89, 108, 133, 159 mm
- Rubber Material: SBR/NBR/FRAS
- Hardness: 60±5 Shore A
