Conveyor Belt Repair Systems
Conveyor belt damage can lead to costly downtime, production losses, and operational inefficiencies. ASAS Technologies Company supplies professional conveyor belt repair systems engineered for quick installation, high tensile strength, and long operational performance. Our repair solutions are suitable for repairing rips, tears, holes, edge damages, and longitudinal belt damage on both textile and steel cord conveyor belts. Designed for harsh industrial environments, these systems provide reliable repair performance without requiring complex installation procedures.

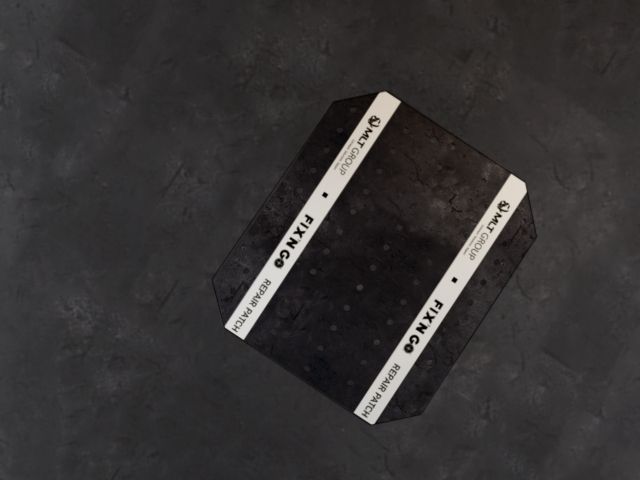

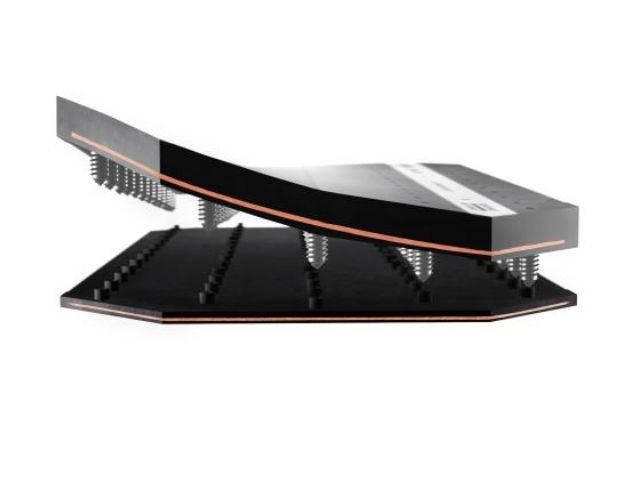

1. FIX’N GO® Repair
FIX’N GO® is an innovative conveyor belt repair patch solution designed for fast and permanent repair of damaged conveyor belts. It provides an efficient method for repairing tears, holes, impacts, and longitudinal rips while extending conveyor belt operational life.
Technical Range
FIX’N GO® repair patch :
- used for longitudinal rips, belt edge snags, impacts, holes,
- even allows two belts to be spliced longitudinally,
- can be used for multi-ply and monoply belts up to 1250 N/mm,
- is available in 2 versions: galvanized steel or stainless steel
- Packs available in 2 and 20 m.
The specific screws are self-drilling and self-tapping : the carcass threads are spread without being cut.

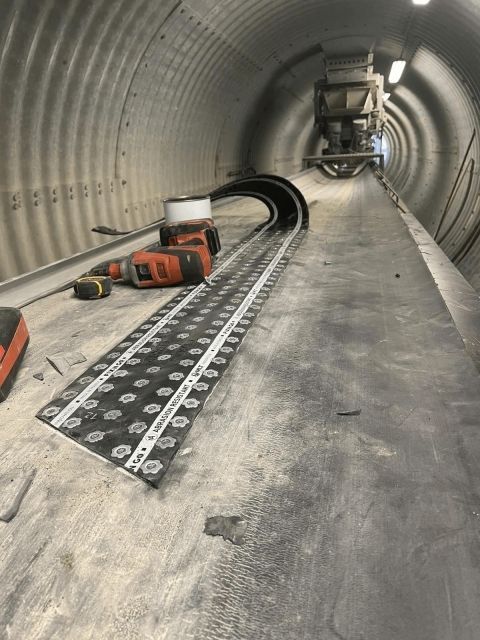

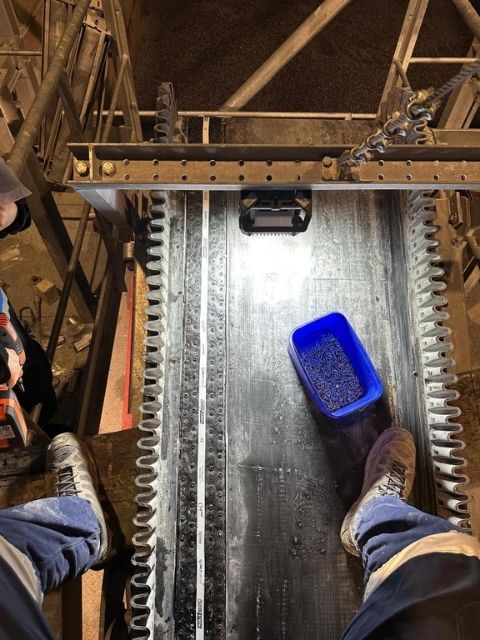

2. SUPER-SCREW® Repair
SUPER-SCREW® Repair is a flexible repair splice system designed for repairing holes, tears, and damaged sections of heavy-duty conveyor belts. The self-drilling and self-tapping screw technology strengthens the conveyor belt carcass while ensuring secure and durable repair performance.
Technical Details
Screws allow the SUPER-SCREW® splice to be installed regardless
of :
- the configuration of the conveyor,
- the conditions of access,
- weather conditions,
- temperature (from -80°C (-112°F) to 200°C (392°F) peak).
Belt Ratings: EP 350 EP 630 EP 850 EP 1000 EP 1050 EP 1250 EP 1270 EP 1800 EP
1850 EP 2000 EP 2050 EP 2500

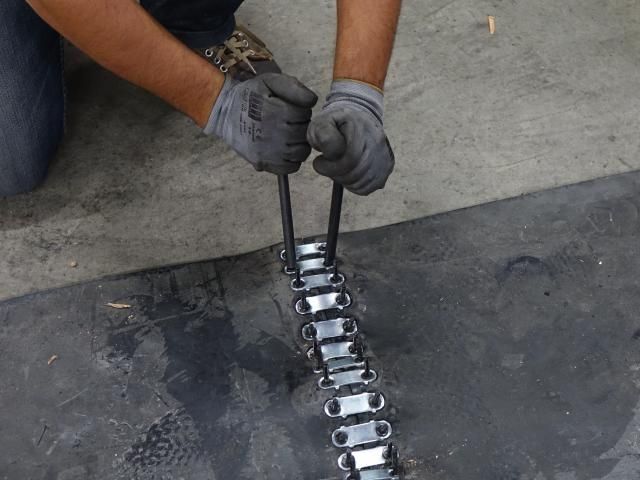

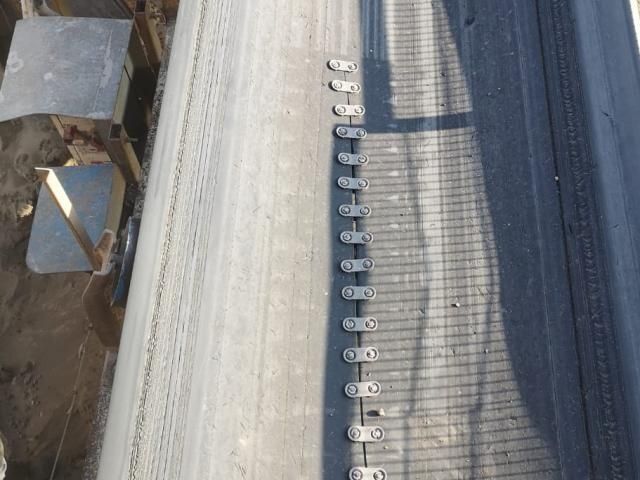

3. Bolt Plate Fastener Repairing
Bolt Plate Fasteners provide quick and reliable conveyor belt repair and splicing solutions for heavy-duty industrial applications. They are designed for conveyor belts operating under high tension and demanding operational conditions.
Key Features
- Carbon steel or wear resistant carbon steel fastener
- Packaging: Box of 10 or 25 fasteners (depending the type)
- Installation Method : Belt drilling template, bolt tightening tool and bolt breaker
| Bolt plate fastener n° | 1 | 140 | 190 | 1 1/2 | 2 | 2 1/2 |
| Belt thickness, mm | 5 - 11 | 5 - 11 | 8 - 14 | 11 - 17 | 14 - 21 | 19 - 25 |

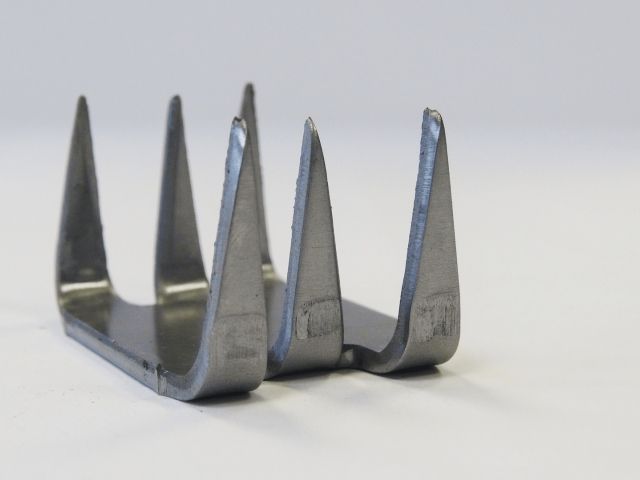

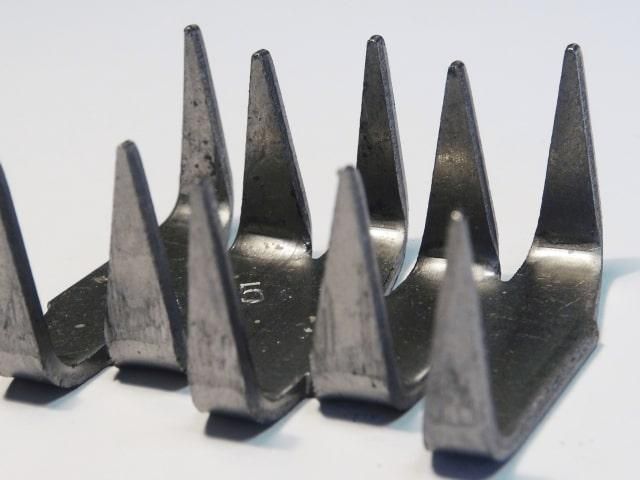

4. Multi Points Fastener Repairing
Multi Point Fasteners are designed for efficient conveyor belt repair applications where reliable belt connection and easy installation are required. They are ideal for repairing damaged conveyor belts and maintaining smooth belt passage.
Key Features
- Carbon steel or wear resistant carbon steel fastener
- Packaging: Box of 10 or 25 fasteners (depending the type)
- Installation Method : Belt drilling template, bolt tightening tool and bolt breaker
Packing
- Coated treated galvanised steel
- Fine and very sharp point fastener
- Available in boxes of 100 fasteners
- Packed in boxes of 25-30 fasteners with 6 or 14 thicker, blunter points
- Installation tool : hammer
| 6 points n° | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Belt thickness, mm | 4 - 6 | 6 - 8 | 8 - 10 | 10 - 13 | 13 - 16 | 16 - 19 | 19 - 22 |
| Multipoints n° | 110 | 112 | 113 | 114 | 115 | 117 |
| Belt thickness, mm | 3 - 4 | 6 - 8 | 8 - 9.5 | 9.5 - 11 | 11 - 14.5 | 14.5 - 17 |

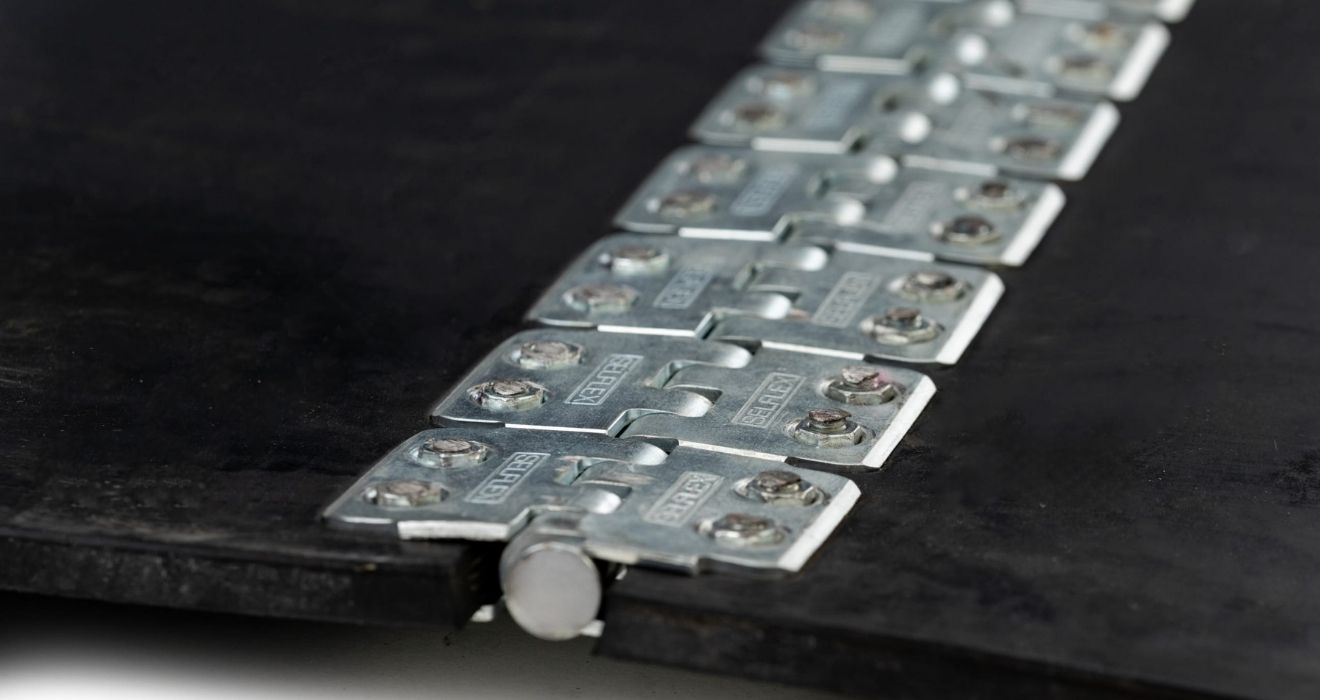

5. Rivet Hinged Fasteners Repairing
Rivet Hinged Fasteners are mechanical belt fastening solutions designed for efficient conveyor belt repair and temporary or permanent belt joining applications. Their hinged design allows smooth belt movement around pulleys.
Key Features
- Flexible hinged construction
- Easy installation
- Reliable belt connection
- Suitable for belt repairs
- Smooth pulley passage
Applications
- Conveyor Belt Repair
- Belt Joining
- Temporary Belt Connection
- Industrial Conveyor Maintenanc
6. Turtle Fasteners Repairing
Turtle Fasteners are durable conveyor belt repair fasteners designed for reliable belt maintenance and repair operations in industrial conveyor systems.
Key Features
- Strong belt fastening
- Reliable repair performance
- Durable construction
- Easy maintenance solution
- Suitable for industrial conveyor applications
Packaging
Available in standard industrial packaging configurations
